Assembly Instruction
FAQ
Luminous Globe-ST003
Problem of the Parts
- Fragile parts: C4，A10=B6=F3
Please add the quantity when filling out the replacement parts form, e.g., ST003-C4*5.

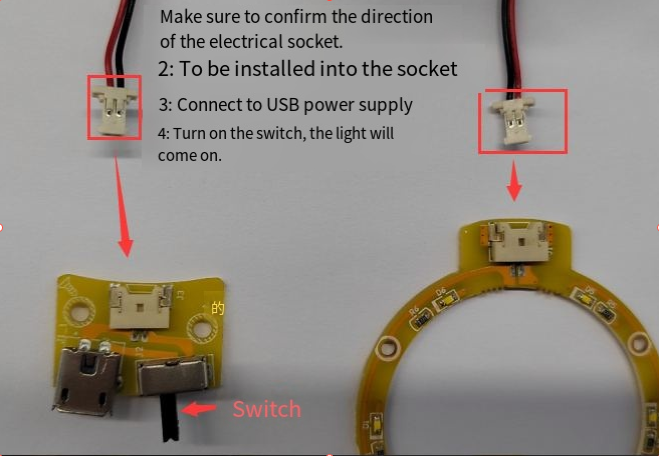

- Test for electronic parts: Notice that the two ends should not be inserted reversely (they can be inserted normally if reversed).
- Position of the magnifying glass:
4.Proper position of Part D2 and E3:
Problems in the process of assembling
- Assembly of C4 or A10: Needs to be inserted flush.
2.The circular hole is blocked, making it impossible to assemble the knob.
Reason: Part C10 is assembled in the wrong direction.The correct direction of Part C10 is:
- The globe cannot be fully inserted onto the base: Check if P8 is assembled in advance.
Non-rotation Problem

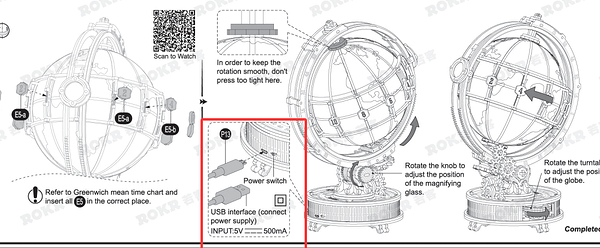

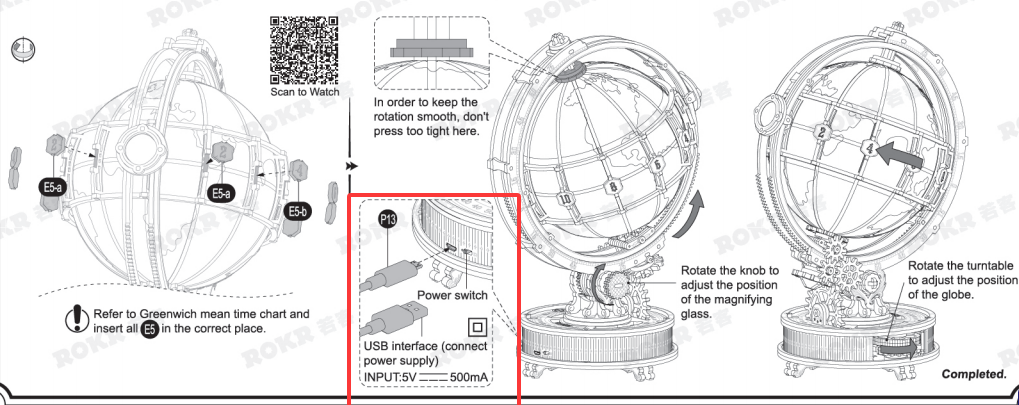

- Tip: This product cannot keep rotating automatically, and it is manually rotated. Connecting the power supply only can switch on the light. If you see a version that keeps rotating automatically, it is a customized display stand in the store, which has been modified.
- The small knob can rotate, but cannot drive the globe to rotate： Check if Gear G19 and G20 are missing.
3.The bottom small knob is completely stuck when rotated.

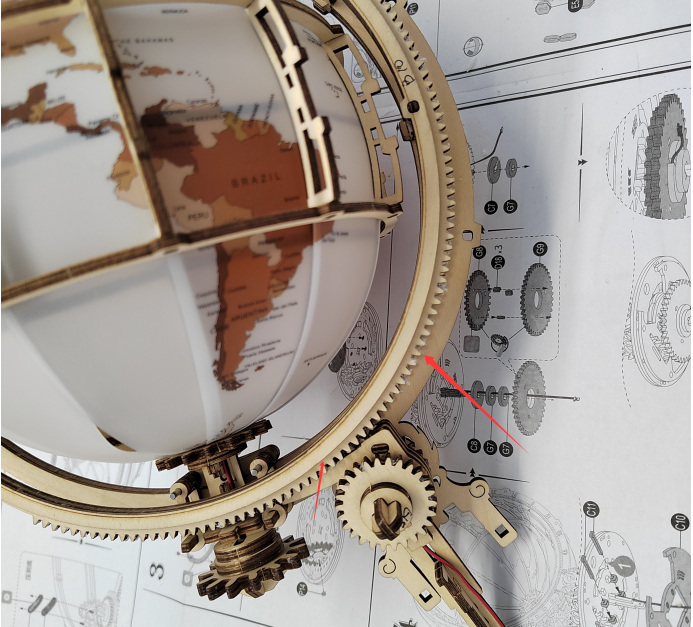

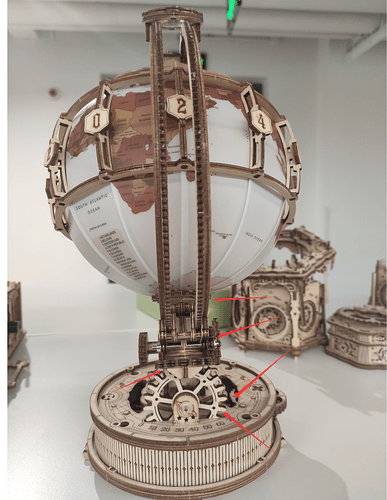

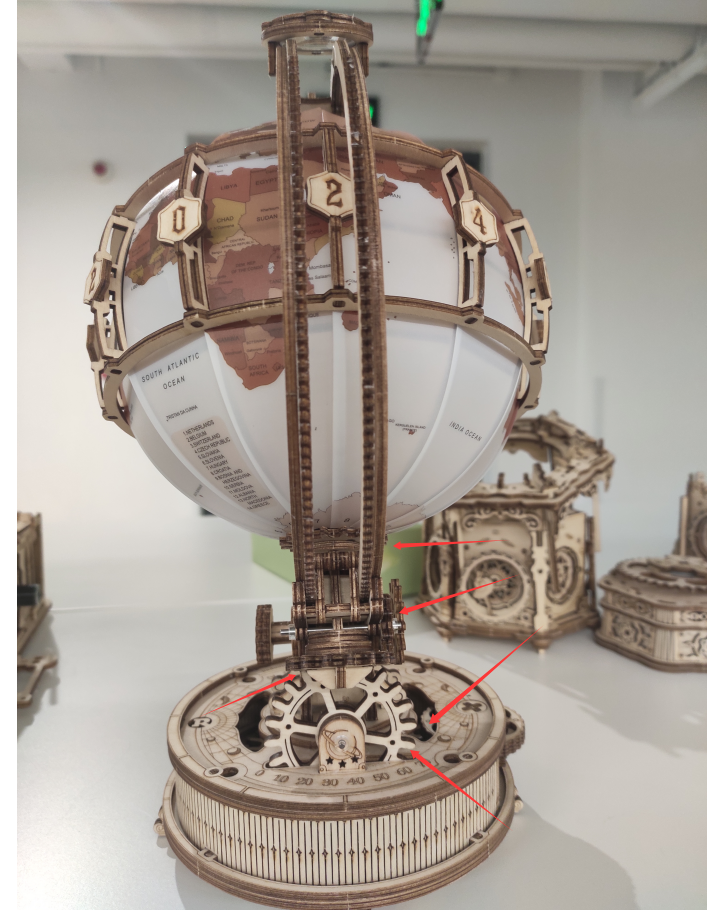

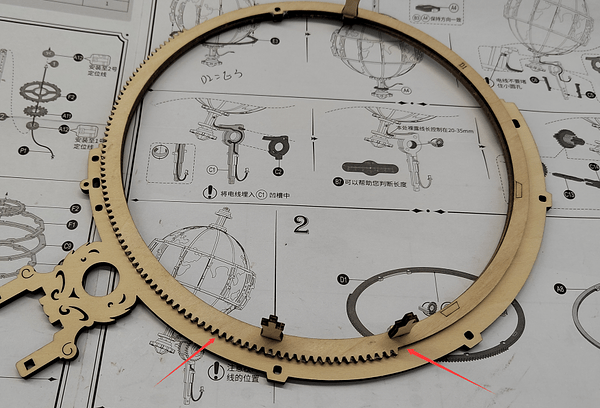

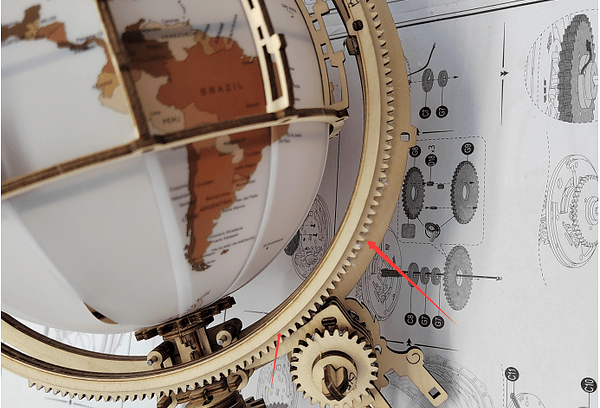

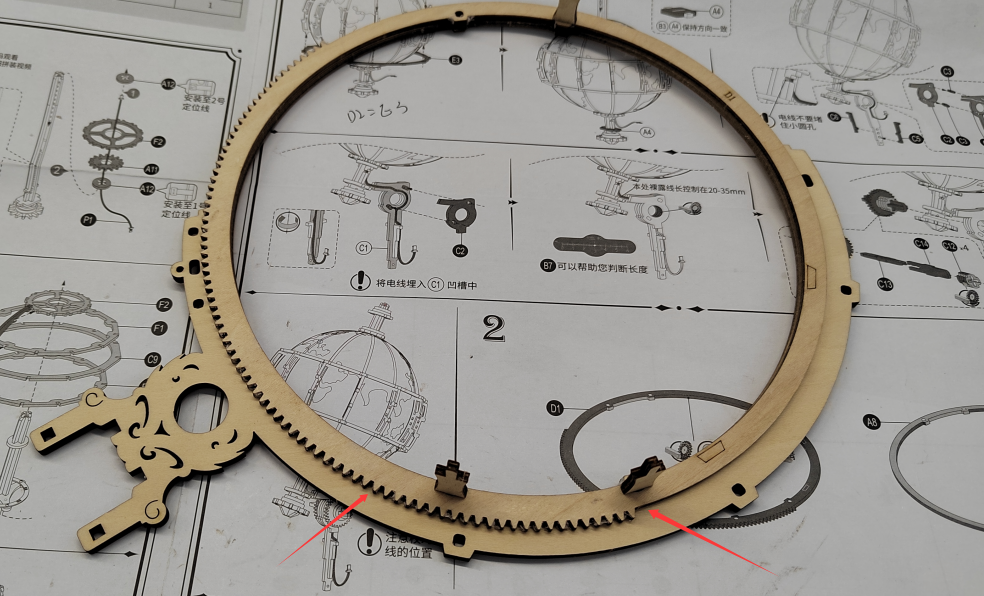

Solution:It may be due to insufficient waxing at some points, causing high friction.Check these points in the picture and disassemble for waxing.

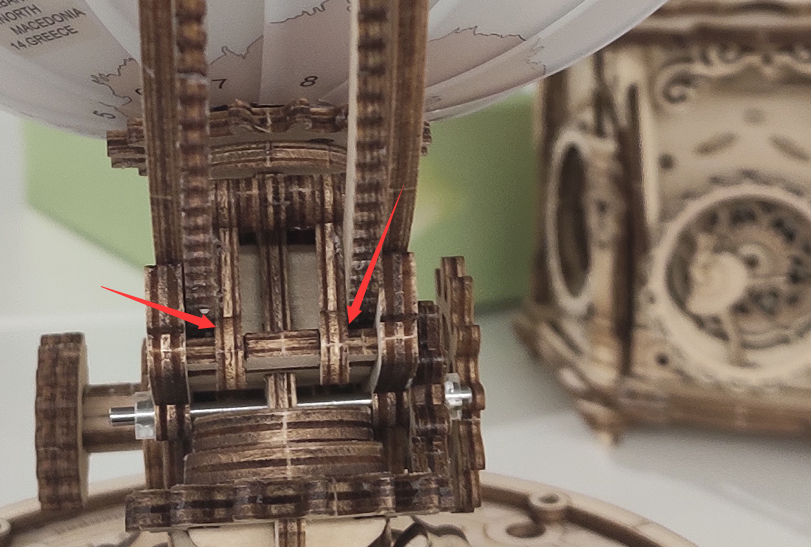

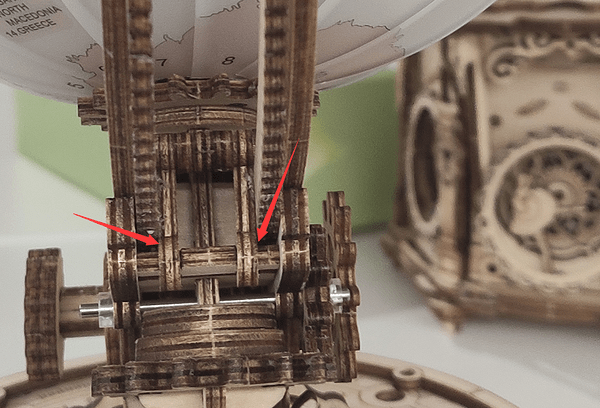

- The magnifying glass cannot be adjusted up and down：It may be due to too much friction between Part D1, A8, E2, B10, and the wooden boards.Wax these points in the picture.
