LG504 - ROKR - MARBLE CLIMBER
(Click the pictures to view in full size)

Assembling Problems

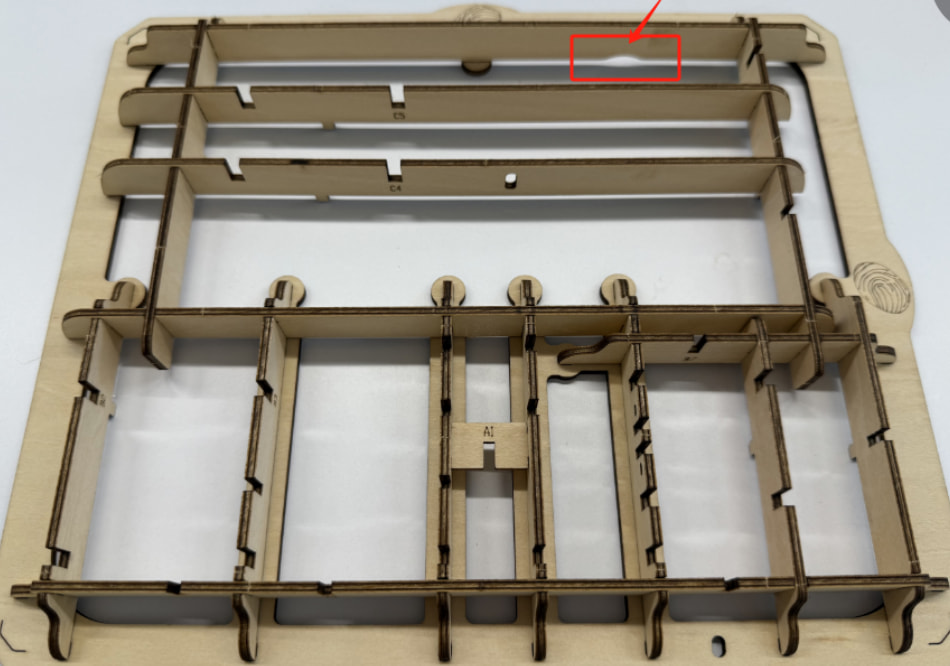

1. Step 1 Pay attention to the direction of the notch for part C3 in the lower left corner during installation.

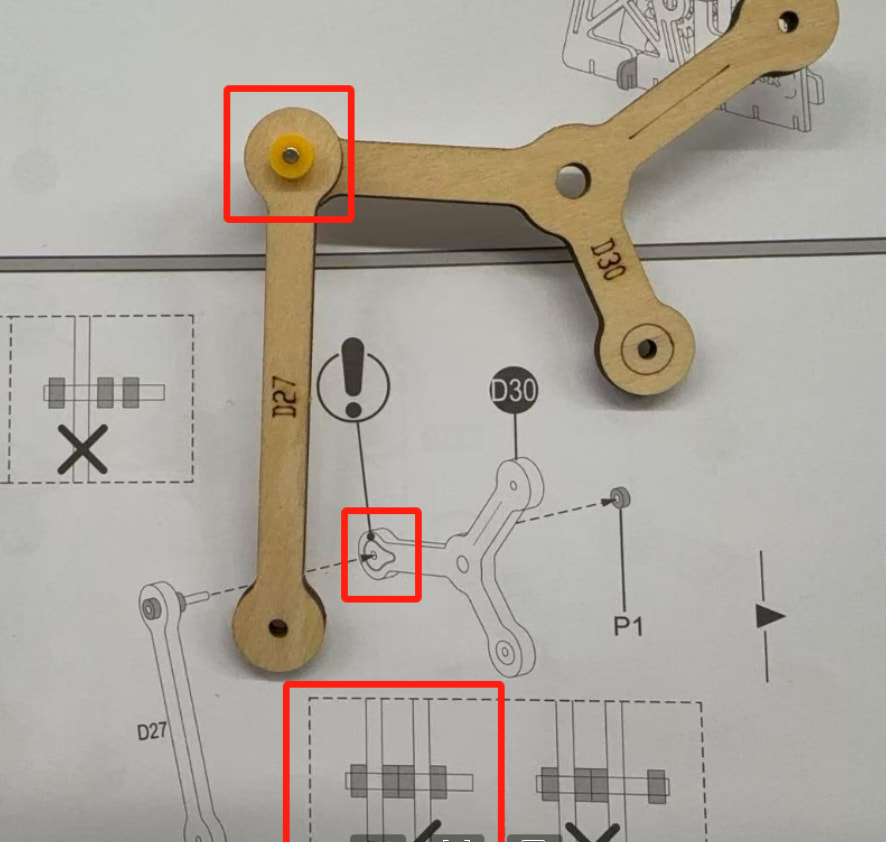

2. Step 13 Pay attention to the three different markings on the triangular part, and ensure that the bushing is pressed tightly; auxiliary tool E18 can be used when pressing.

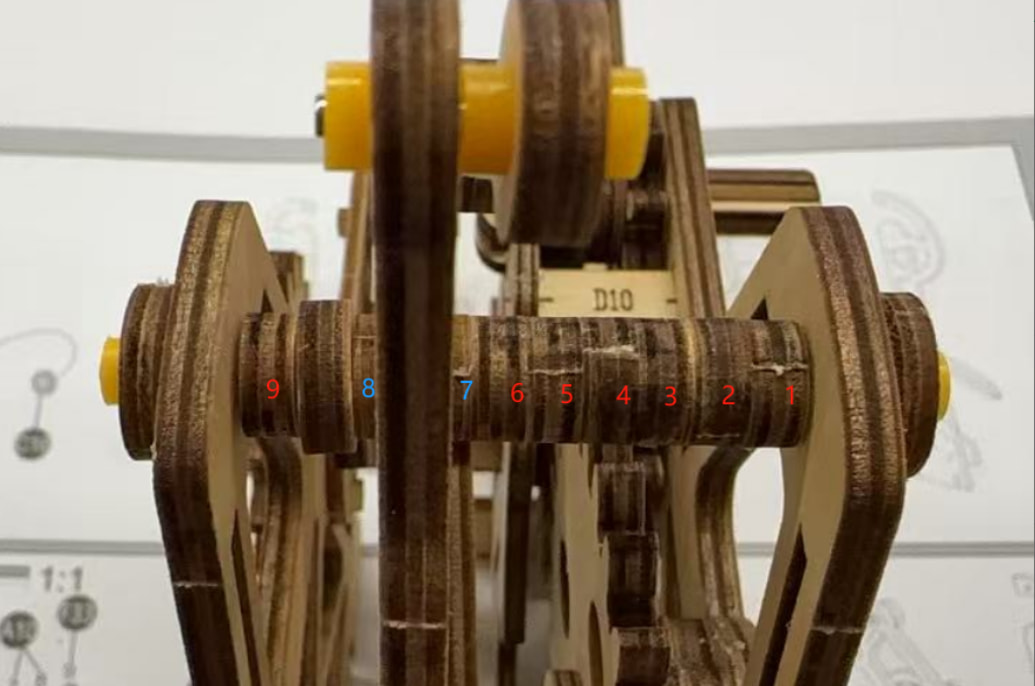

3. Step 20 Pay attention that only the two shortest parts on the outer sides are P1 plastic bushing parts; all the middle ones are F33 and A10 wooden board parts.




Functional problems

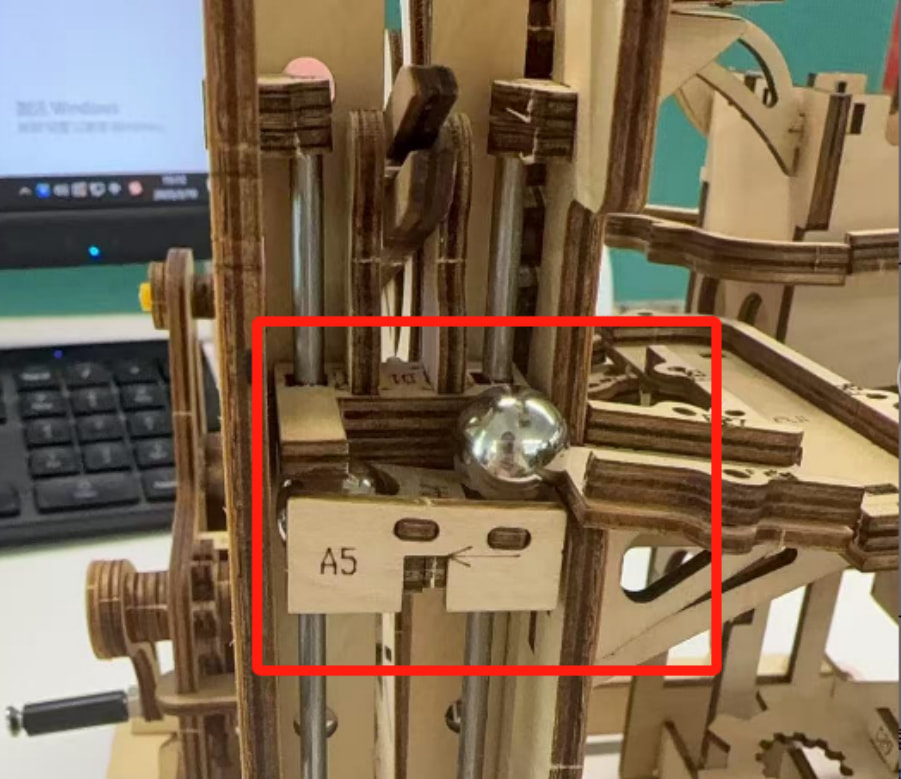

1. The steel balls are not lifting up, always falling short by a bit in height.

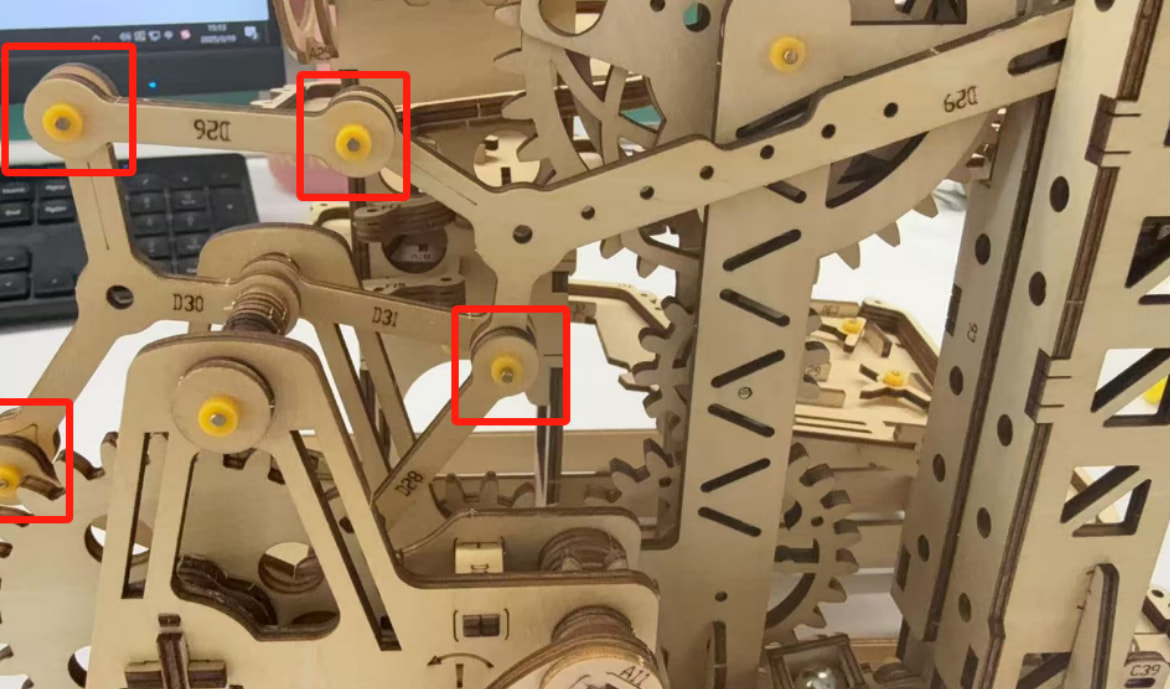

   Squeeze or press tightly the several bushings circled in the diagram for the bracket part.
